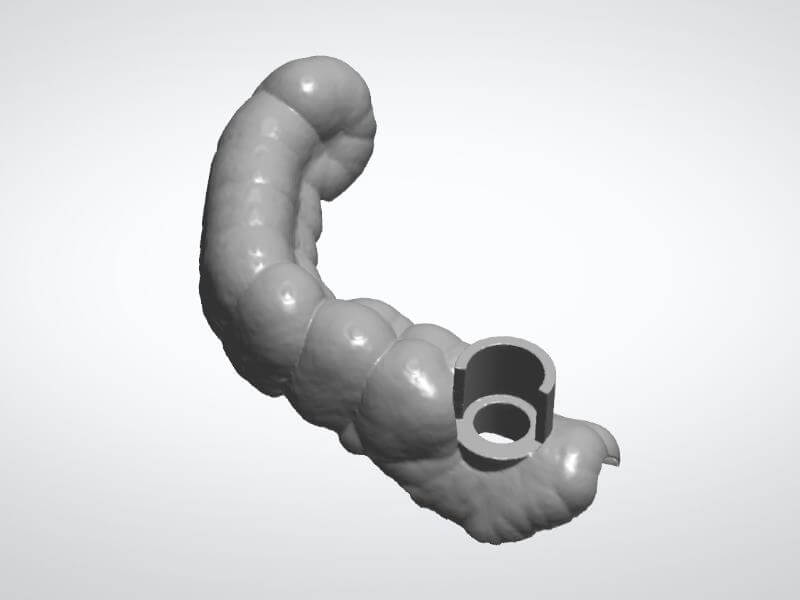

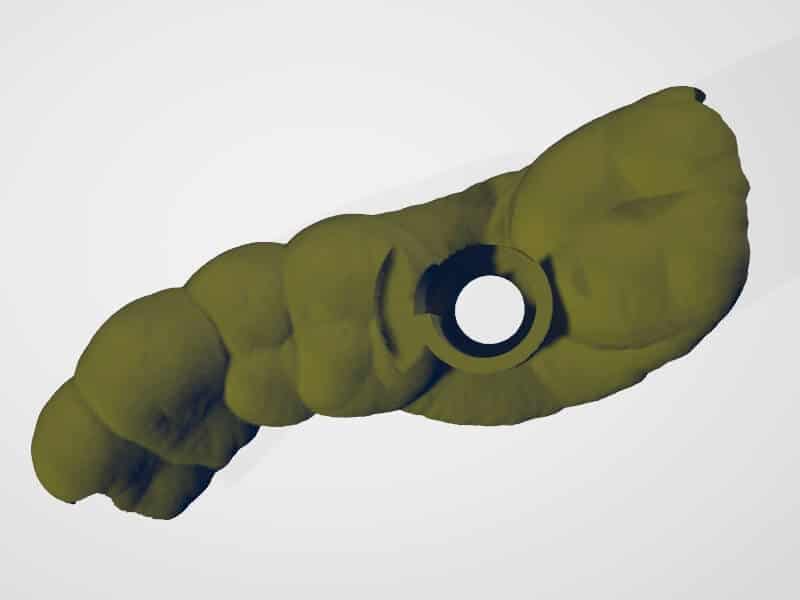

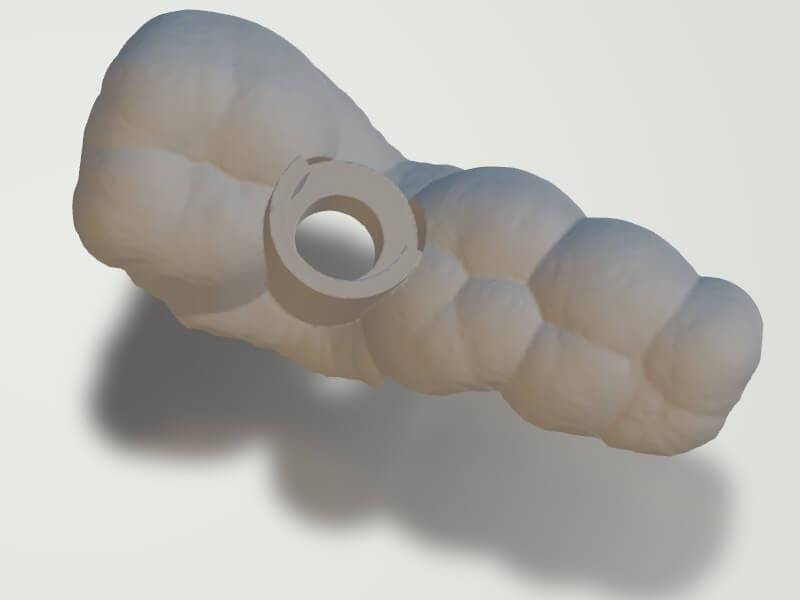

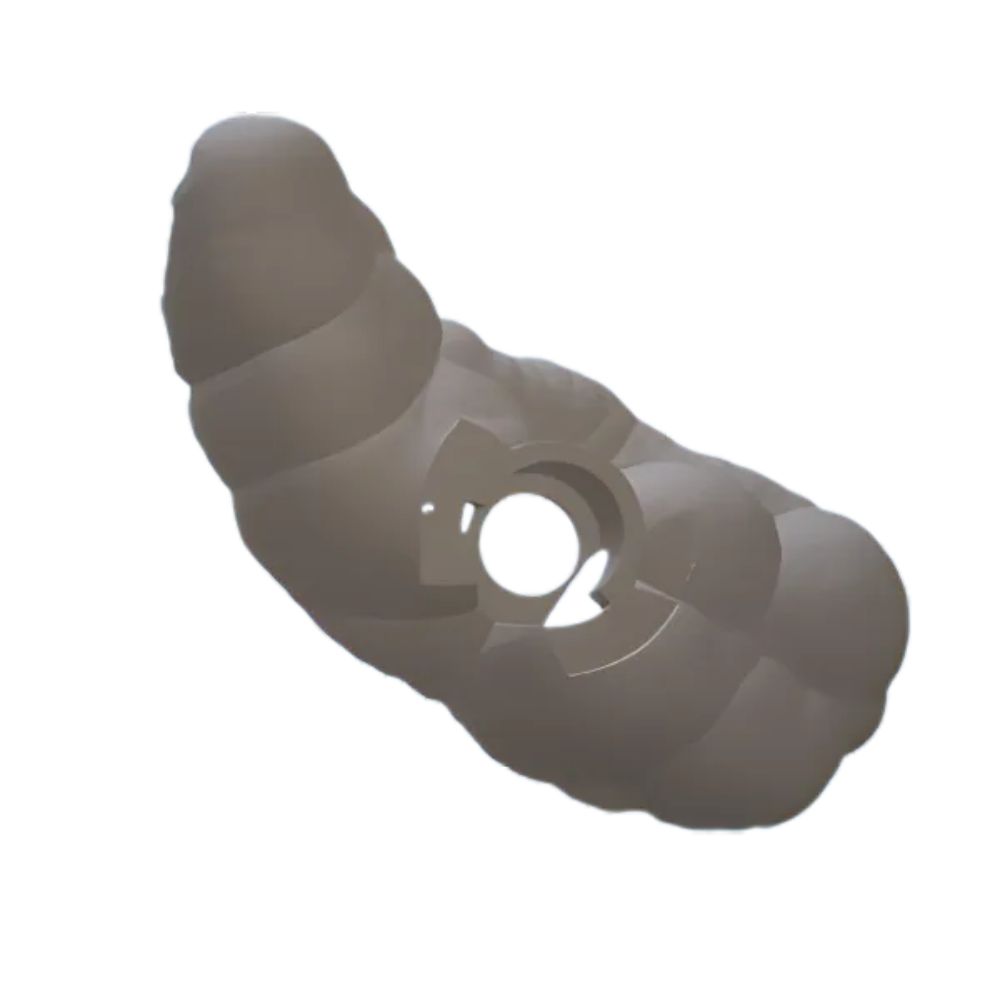

Digital Surgical Guide Design & Implant Planning Service
Predictable Surgery. Zero Guesswork.
- Scope: Tooth-Supported, Mucosa-Supported (Dual Scan), Bone-Supported.
- Deliverables: STL Guide File + PDF Drill Protocol + Planning Video.
- Compatibility: Supports all Open System Guided Kits (Keyless or Metal Spoons).
- Turnaround: 24 Hours (Overnight).
Stop paying expensive annual software fees. Let us plan for you.
Why Choose China Dental Labo?
- FDA & ISO Certified Materials: Only premium, biocompatible materials used.
- Factory-Direct Pricing: Save up to 60% compared to local labs.
- 24h Global Turnaround: Fast digital delivery via email/portal.
- 100% Satisfaction Guarantee: Free remake or full refund if not satisfied.
Implant Placement with Engineering Precision.
Freehand surgery relies on “eyeballing” the angulation, which can lead to prosthetic complications later. China Dental Labo offers full-service Surgical Guide Design & Implant Planning. We merge the CBCT and Intraoral Scan to visualize the bone volume, nerve position, and prosthetic outcome before you even touch the patient.
Technical Engineering Specifications
A surgical guide is useless without the correct settings. We calibrate the design to match your specific surgical kit:
Kit Configuration
- Offset Settings: We adjust the specific offset (e.g., 9mm, 10.5mm) required by your drill keys so the depth stop works perfectly.
- Sleeve Type:
- Metal Sleeves: Standard hole size (e.g., 5.1mm) for Steco tubes.
- Keyless (Sleeve-on-Drill): Optimized for Neodent GM, Straumann, or Osstem guided kits (print resin only).
- Windows: Inspection windows are added to verify the guide is fully seated on the teeth.
Types of Guides
- Pilot Guide: Simple guide for the first drill (2.0mm) only.
- Fully Guided: Control depth, angulation, and position for the entire drill sequence up to implant insertion.
- Stackable Guide: For full arch cases (Bone reduction -> Implant Placement -> Temp Loading).
The Critical Deliverable: The Drill Report
We don’t just send you an STL file. We send you a roadmap. Every case includes a PDF Drill Protocol containing:
- Implant Info: Brand, Diameter, Length.
- Drill Sequence: Which key to use for each step.
- Sleeve Offset: Verification of the D-value.
- Screenshots: Cross-sectional views of the implant in the bone.
Seamless Digital Workflow
- Scan: Upload DICOM (CBCT) + STL (Intraoral Scan). *Note: Keep bite open during CBCT to separate arches.*
- Prescribe: Tell us the Implant System (e.g., “BioHorizons Tapered Internal”) and Kit Brand.
- Approve: We send a short video of the plan. You approve or request changes.
- Print: We create the Guide STL for you to print.
Fully Edentulous Case?
Remember to use the “Dual Scan Protocol” (Scan patient wearing denture with markers + Scan denture alone). Contact us for the protocol guide.
Email your case files to: chinadentaldesigns@gmail.com
